Spectrophotometer and fluorometer

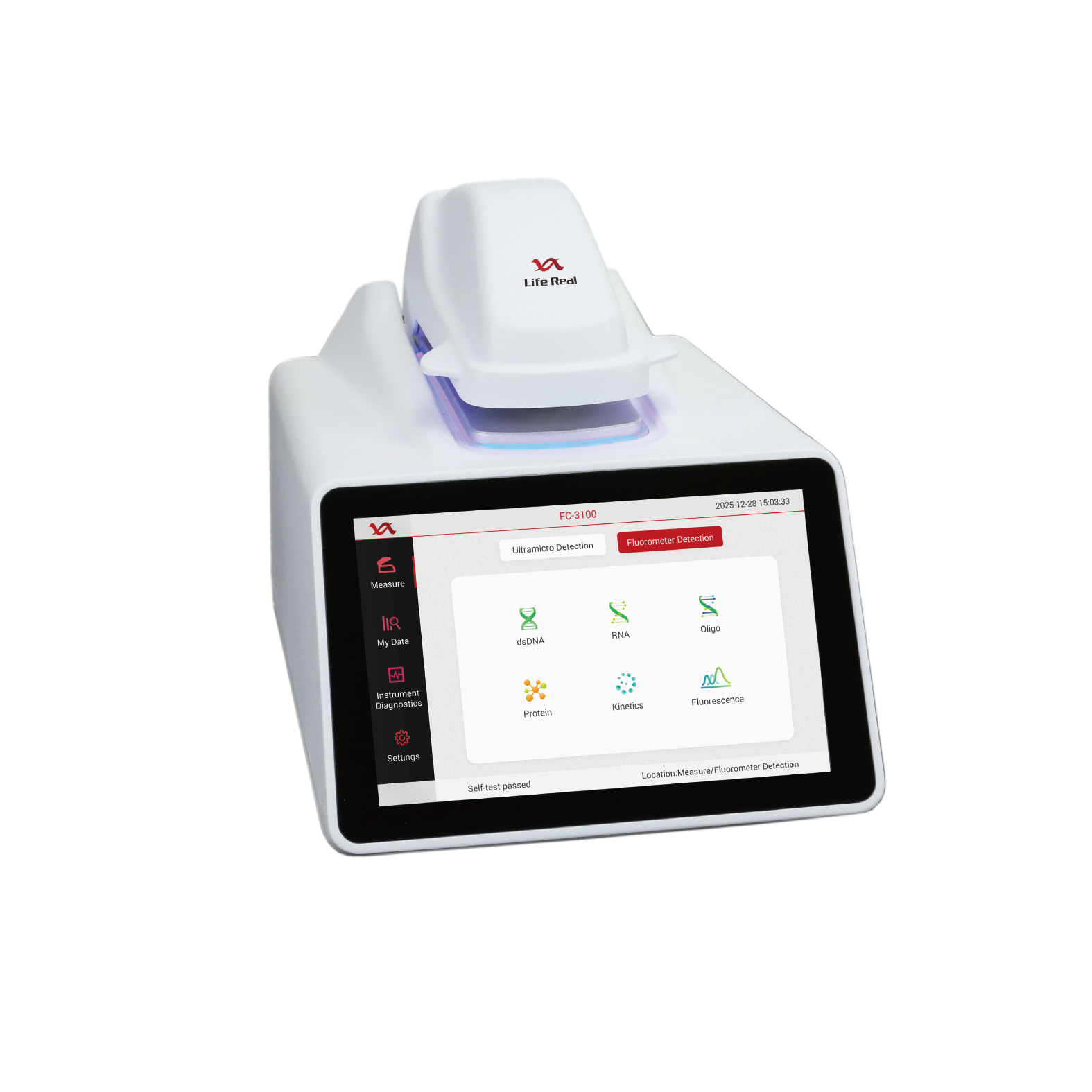

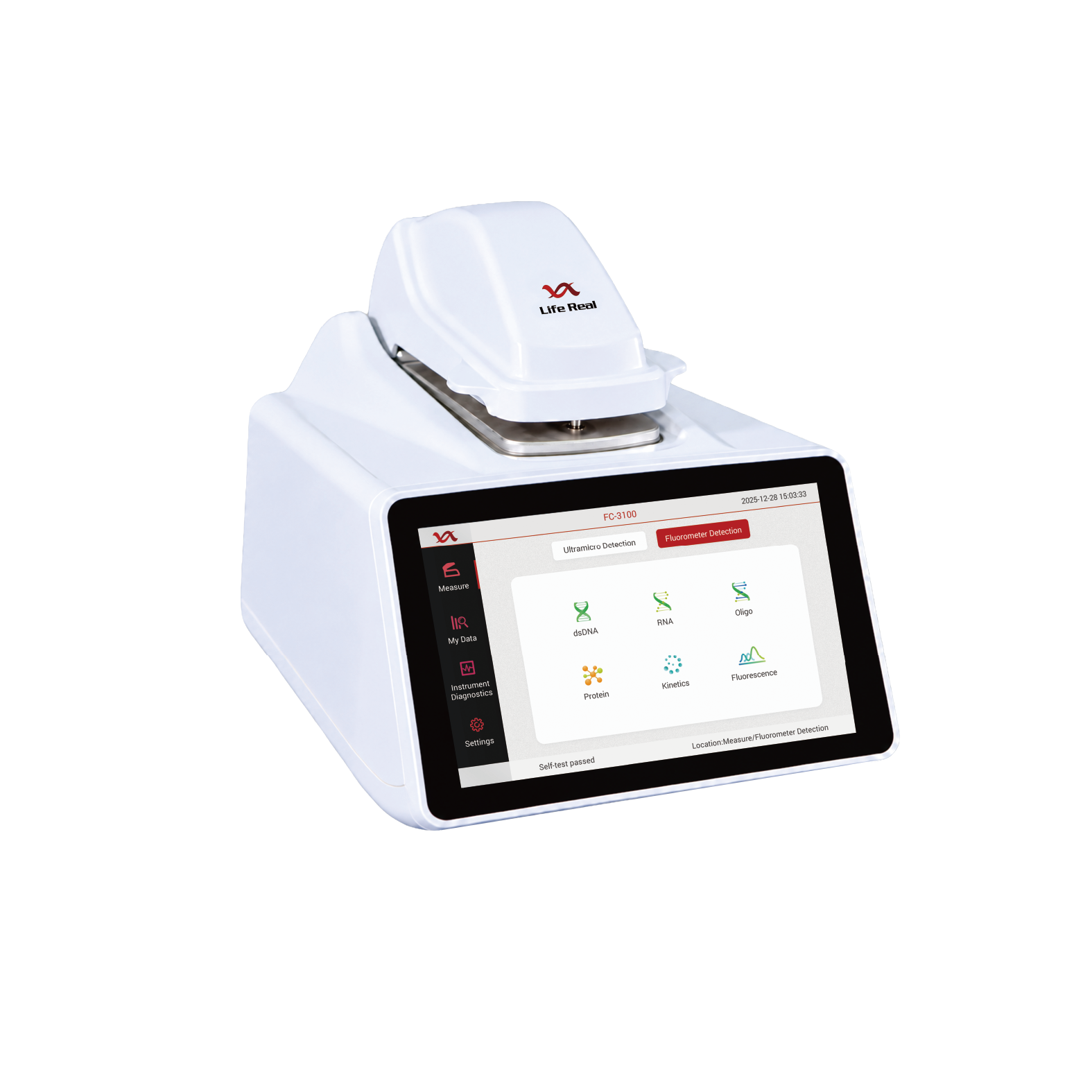

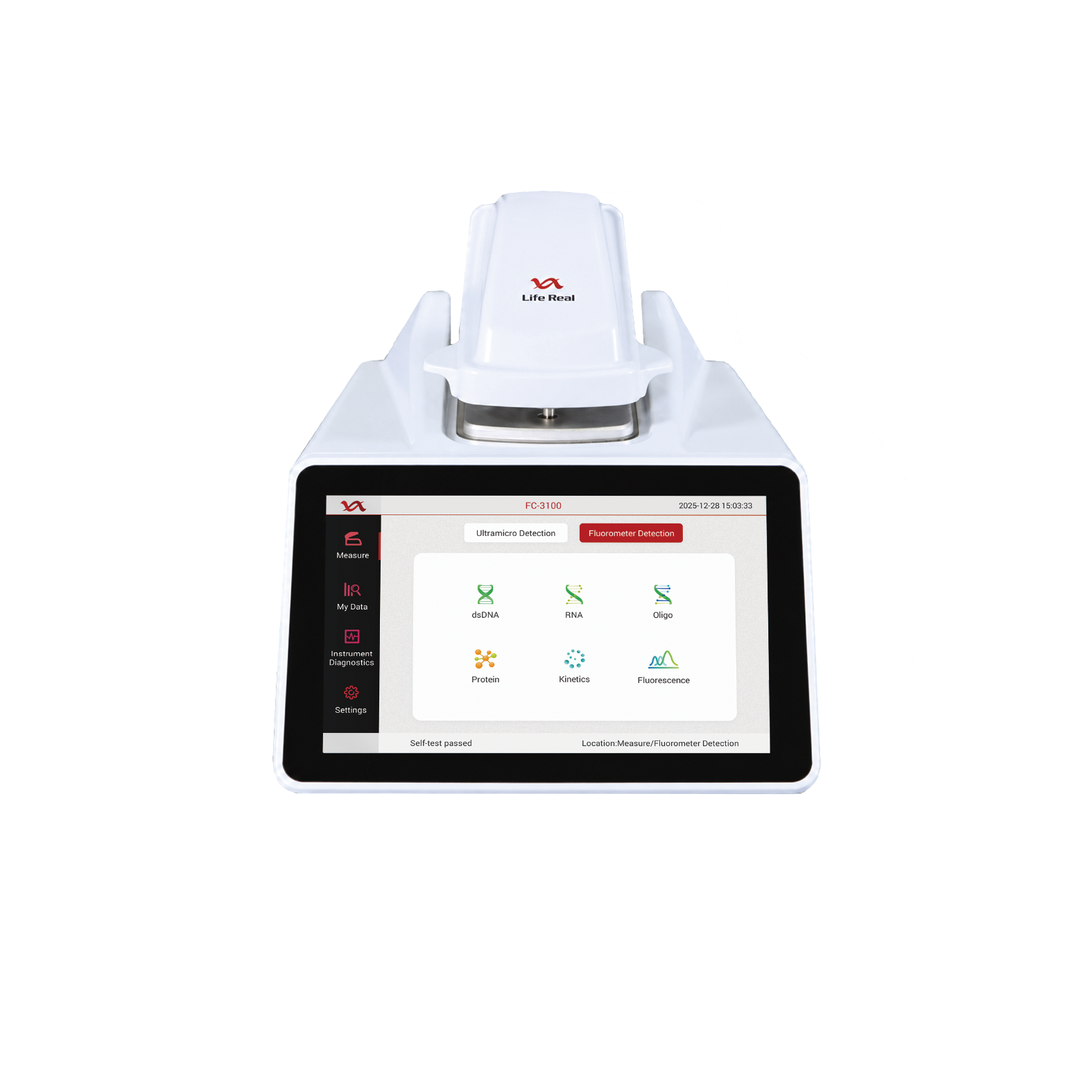

Micro-volume UV-Vis Spectrophotometer and fluorometer

Combining UV-Vis Absorbance and Fluorescence Detection in One Powerful Platform. This versatile instrument integrates UV-Vis absorbance spectroscopy and fluorescence detection with three sampling modes—microvolume pedestal mode, cuvette mode, and fluorescence detection mode—to meet a wide range of laboratory applications. Featuring a responsive 7-inch touchscreen, real-time data display, and seamless data storage/export capabilities, it delivers an intuitive and efficient user experience.
Designed to support the complete NGS library QC and quantification workflow, the system enables direct measurement of high-concentration samples without dilution, as well as accurate nucleic acid and protein quantification, purity assessment, OD600 bacterial growth monitoring, and enzyme kinetics studies. From NGS quality control to routine quantitative analysis, it provides a comprehensive, high-performance solution for modern laboratories.ntrol and quantification to routine laboratory analysis.

Consultation

Features

UV-Vis Detection

Micro-volume pedestal Mode--- Intelligent 6-pathlength automatic switching (0.02 mm – 1.0 mm)；Wide dynamic detection range； dsDNA measurement up to 37,500 ng/µL without dilution；Simultaneous A260/A280 and A260/A230 purity ratio output.

Cuvette Mode---Multi-purpose detection with heating and stirring support； Full-wavelength detection for nucleic acids, proteins, OD600 measurements, and other applications；One-click bacterial concentration measurement and microbial growth monitoring.

Applications---Direct measurement of high-concentration biologics, antibodies, plasmids, and mRNA samples；Reaction monitoring including microbial/cell culture OD600 and enzyme kinetics；Routine nucleic acid and protein quantification in universities, research institutes, CROs, agriculture, food, and environmental testing laboratories.

Fluorescence Detection

Standard Blue Fluorescence Channel---Specifically designed for accurate NGS library quantification, compatible with mainstream fluorescent dyes. It selectively detects intact double-stranded DNA (dsDNA) while effectively minimizing interference from adapter dimers, ensuring reliable and precise quantification results.

High Sensitivity---Accurate quantification of trace samples, with a dsDNA detection limit as low as 5 pg/µL.

Single-Tube Measurement---Fastly obtaining results in 3 seconds using a single-tube format. The design eliminates cross-contamination and signal crosstalk commonly associated with microplate-based assays, while maintaining compatibility with a wide range of commercially available fluorescence quantification reagents.

Customizable channels available---A standard blue fluorescence channel is included. With the optional green, red, UV channels for customization, it is available to the diverse fluorescence applications, such as the quantification to the RNA, proteins, and other biomolecular targets.

Applications---NGS laboratory: post-extraction UV–Vis preliminary purity assessment; pre-library fluorometric quantification to determine initial input amount; post-library fluorometric quantification for preliminary yield screening..
