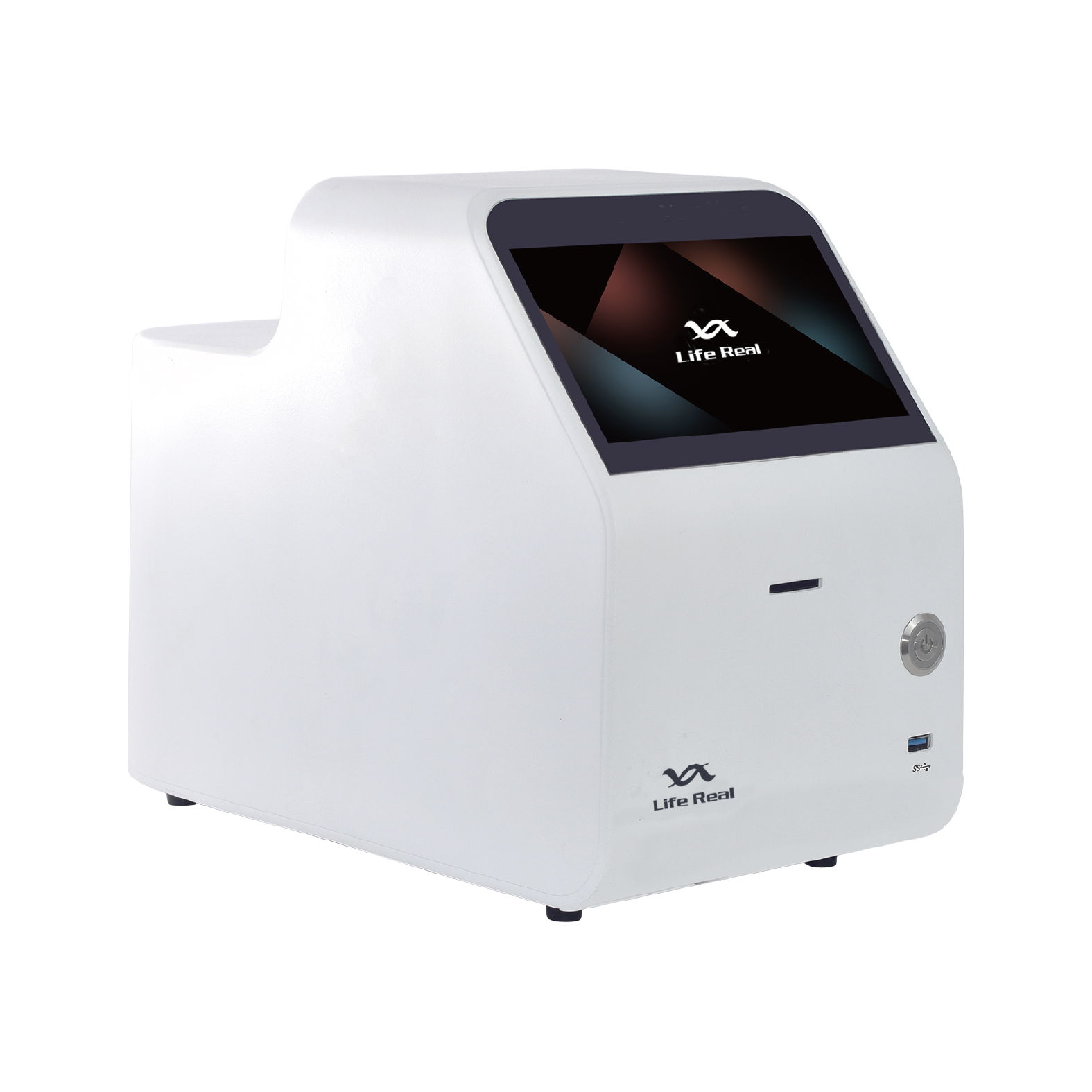

Fully Automatic High-throughput Cell Counter

Fully Automatic High-throughput Cell Counter can perform high-throughput bright field and trypan blue counting on various types of cells. it adopts an integrated design, with a 7-inch screen on the body. With the EasyFive six-digit cell counting slide, it can complete the accurate counting of 6 samples in one step in just 1 minute.

Consultation

Features

Patented fully automatic/autofocus cell viability analysis system
Stable, high-speed, high-throughput image analysis technology
Fully self-developed AI algorithm
Humanized interactive interface
EasyFive cell counting slide/reusable counting slide
Wide cell compatibility

Specifications

Name
Fully Automatic High-throughput Cell Counter
Concentration range
1 x 10^{4 _}3x 10⁷cells/mL
Diameter range
5-200μm
Viability range
0-100%
Sample Volume
10μL(GPC100,GR100) /20μL(GPC200,GR200)
Single sample analysis time (single view)
< 1 second
Six sample analysis times (five views)
< 51 second
Output format
jpg,PDF,csv
Features
6-slot counting high-throughput, flow cytometry data, organoid analysis,FDA, Lims laboratory management system interface, dilution calculator
Screen
7-inch multi touch color display screen
Camera
Industrial grade CMOS 6.3 million pixels (color high-definition)
Storage
Standard 128GB hard drive, other capacities are optional
Focus mode
Auto Focus
Dimensions(W×D×H)
190mm*276mm*367mm
Weight
4.2kg(Excluding power adapter)
