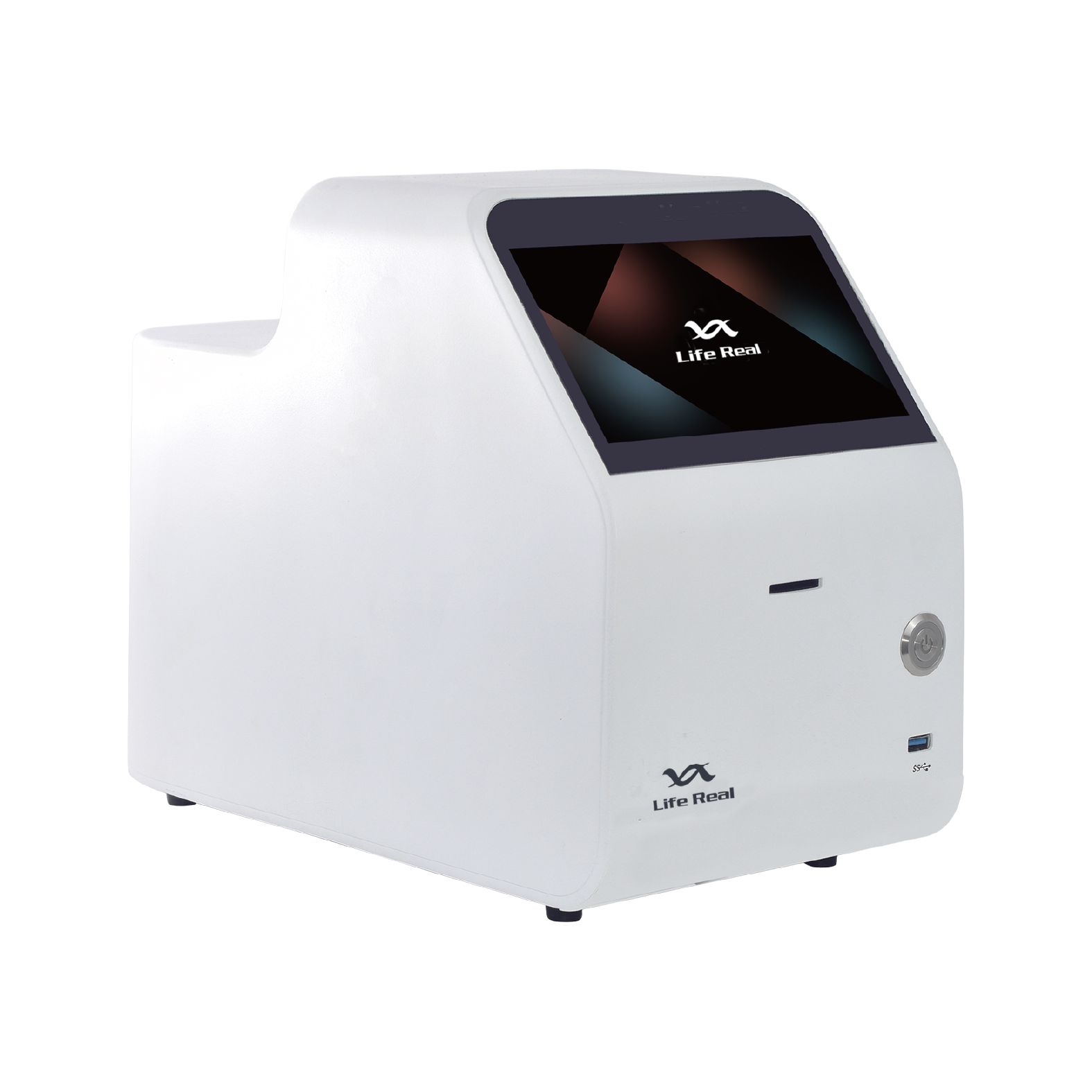

Fluorescence Cell Analyzer

Fluorescence Cell Analyzer is equipped with two fluorescent excitation wavelengths and two detection filters. It offers additionally a bright field view on all samples in the digital microscope optics. The analyzer allows for the routine analysis of cell density and viability, and transfection efficiency. The pre-configured apps guarantee an easy, anyhow safe execution of all tests.

Consultation

Features

Patented autoFocus automated cell analyzer
Five fields of view per sample with high repeatability and fast image per processing
Supporting various cell applications
FDA 21 CFR Part 11 compliant operation
AO/PI Double fluorescent staining
Cell transfection——GFP Fluorescence detection

Specifications

Name
Fluorescence Cell Analyzer
Concentration range
1 x 10^{4 _}3x 10⁷cells/mL
Diameter range
5-200μm
Viability range
0-100%
Sample Volume
10μL(GPC100,GR100) /20μL(GPC200,GR200)
Single sample analysis time (single view)
Bright field<l second, Fluorescence<12 seconds (AO/Pl)
Single sample analysis time (five views)
Bright field<8 second, Fluorescence<54 seconds (AO/Pl)
Six sample analysis times (five views)
Bright field<55 second, Fluorescence<334 seconds (AO/Pl)
Output format
jpg,PDF,csv,FCS(Optional)
Features
6-slot counting high-throughput, flow cytometry data, organoid analysis,FDA, Lims laboratory management system interface, dilution calculator
Screen
7-inch multi touch color display screen
Camera
Industrial grade CMOS 6.3 million pixels (color high-definition)
Storage
Standard 128GB hard drive, other capacities are optional
Focus mode
Auto Focus
Dimensions(W×D×H)
190mm*276mm*367mm
Weight
4.4kg(Excluding power adapter)
